Problem:
NIfTI format masks with cluster labels (e.g., {0, 1, 2, 3, etc.}) generated from a seed-to-voxel analysis and exported using the "export mask" feature of the CONN MATLAB toolbox.

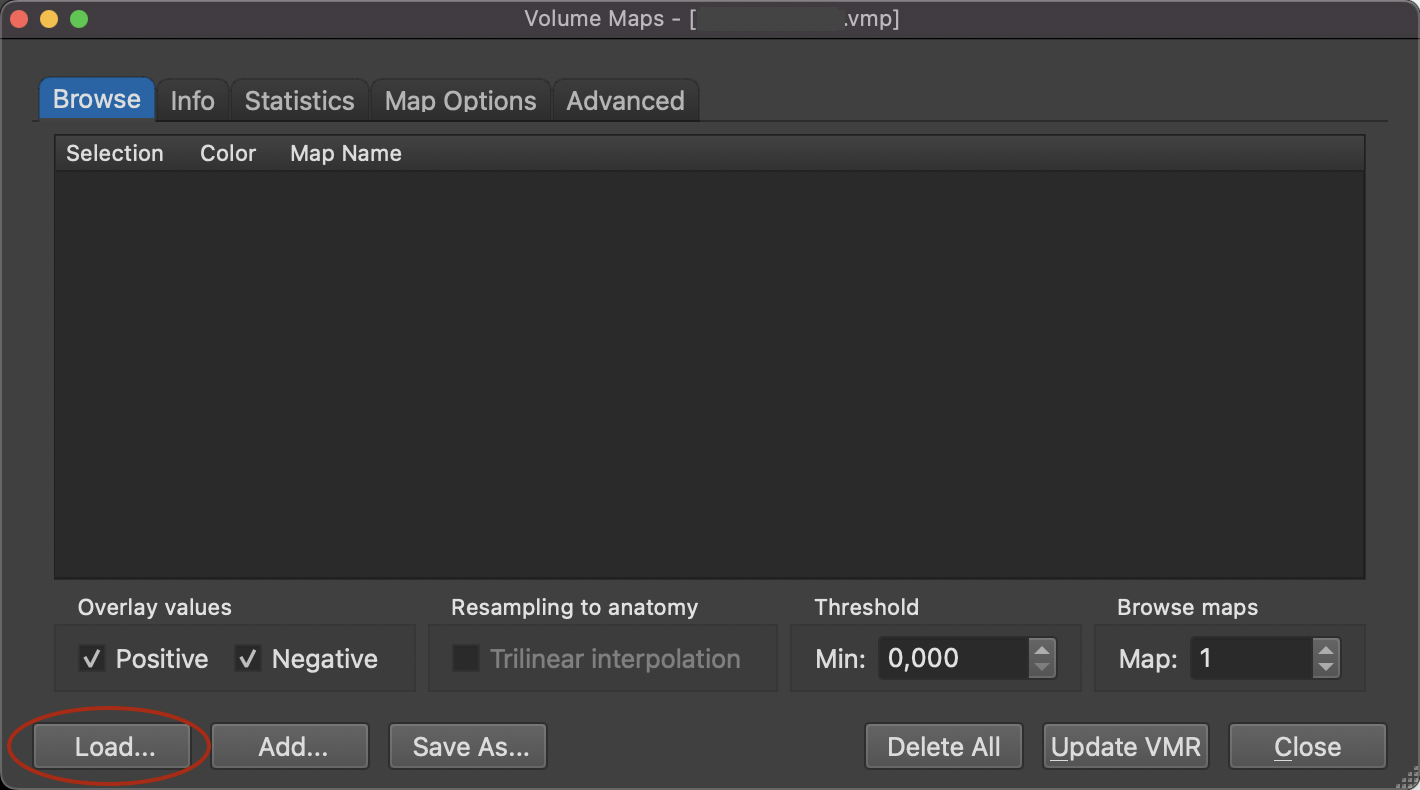

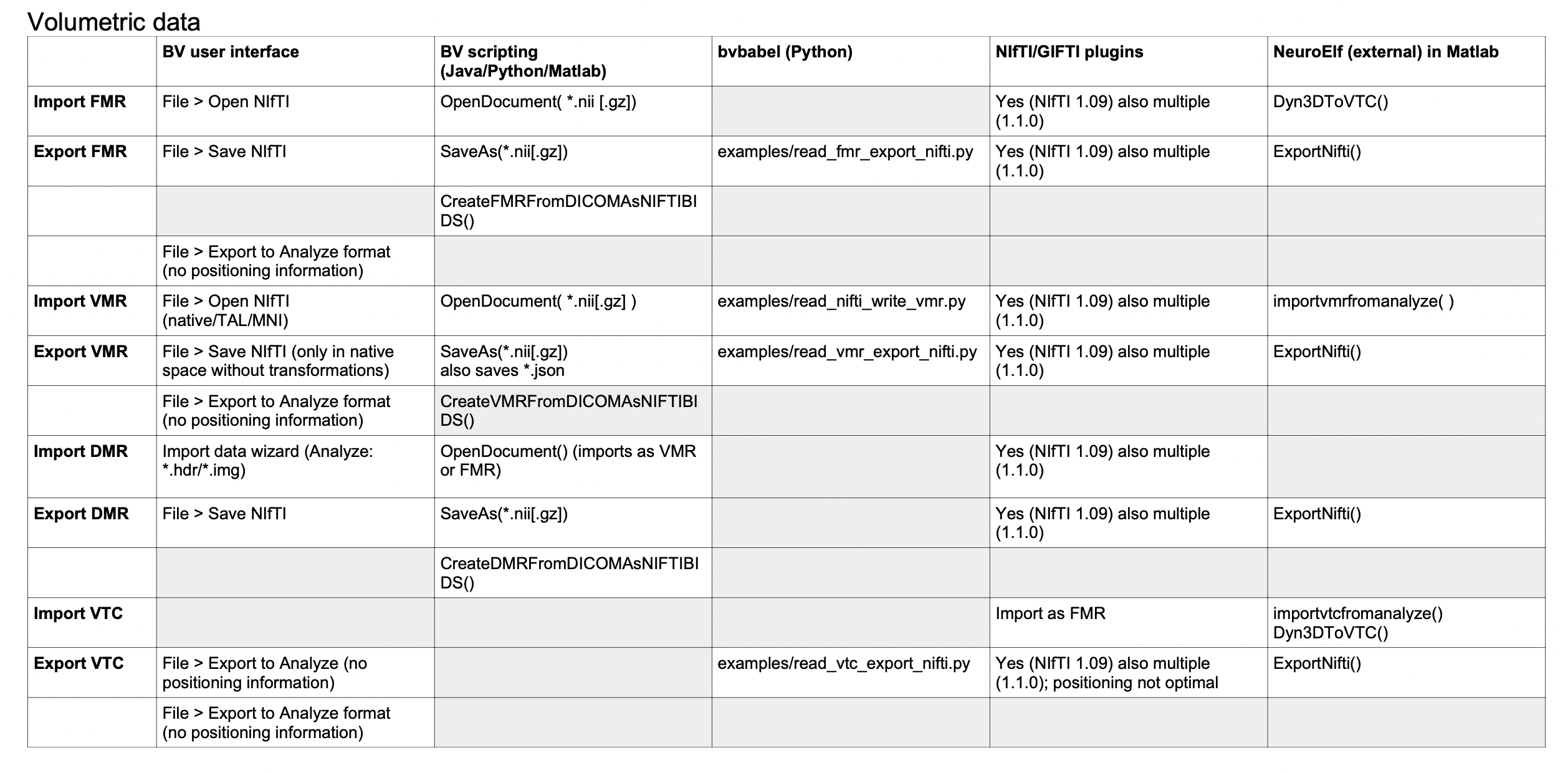

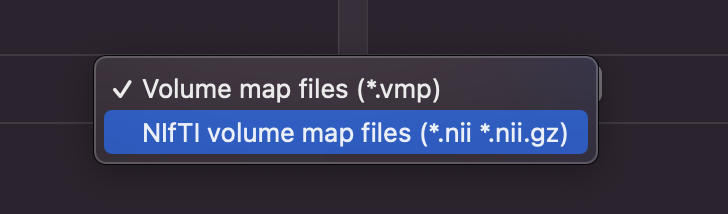

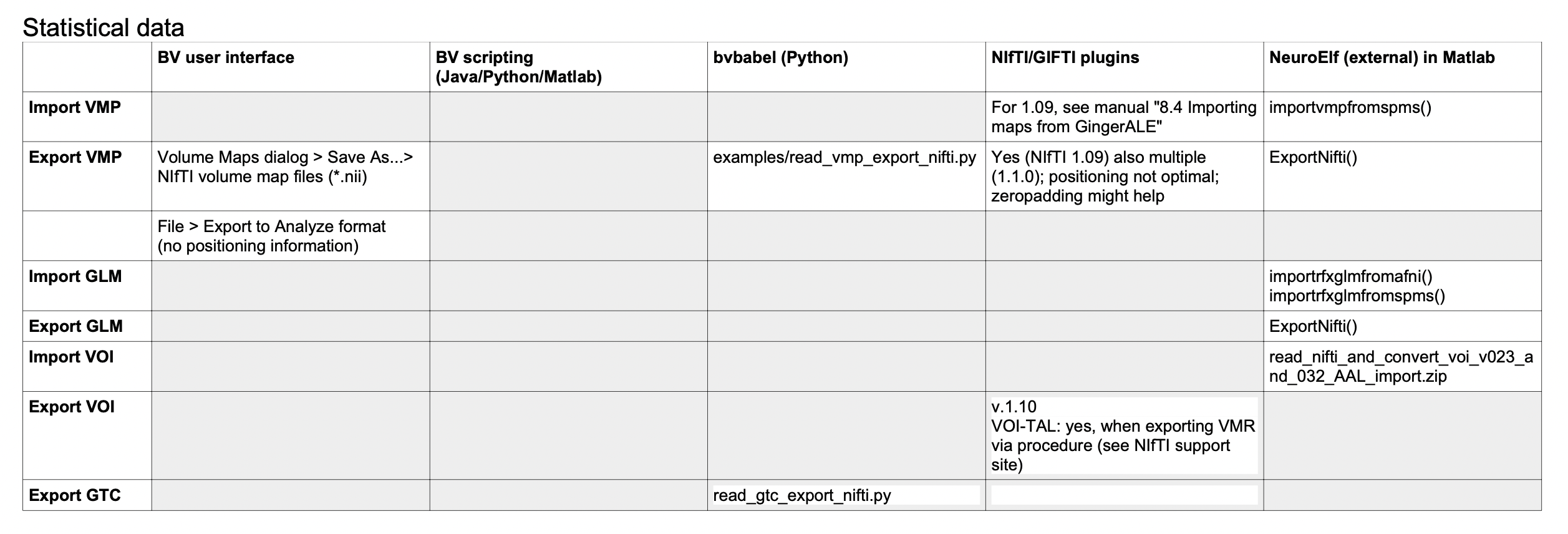

When opening the NIfTI file in BrainVoyager, an error message was displayed: "data type 768 is currently not supported," which suggested to me that the issue was related to the "variable/data type" that CONN was using to store the data for each voxel.
Although the range of label values was just {0, 1, 2} in this case, CONN was using a datatype with ID 768 (unsigned int 32 bits https://nifti.nimh.nih.gov/nifti-1/documentation/nifti1fields/nifti1fields_pages/datatype.html), as confirmed in the NIfTI file header metadata using software like ITKsnap.
Solution that was tested and worked:
Open the NIfTI file using ITKsnap and save it without making any changes. This approach can probably be applied using other NIfTI reading software as well.
ITKsnap seems to adjust the "variable/data type" with which it saves the NIfTI file based on the range of variable values (in this case {0, 1, 2}) and thus saved it using a data type with ID 4 (DT_INT16), which appears to be compatible with BrainVoyager. Make sure to verify that the newly saved image matches the original one and that no data was lost in the process.
Kindly contributed by Ricardo Martins
This version of the plugin, represents a complete overhaul, refactoring and redesign of the previous version. Major new features include the functionality of browsing the opened VMRs, support for protocol files (with some restrictions), new interactive plots and numerous of bug triages and fixes.
The purpose of the plugin, is to provide an extra layer in the analysis of brain connectivity, through a graph theoretical approach. It is comprised of two distinct entities, one is the brainnets, and the other, the plugin itself. brainnets is our in-house library for dealing with graph networks. The backbone network algorithms and features are implemented in this library. The plugin on the other, acts as GUI and glue between BrainVoyager 21.x and brainnets. It helps the user load the requested data, configure an analysis pipeline, compute and report different graph features and metrics, and visualize the results in an interactive manner.
Here shortly, we will give the basic concepts and notations for graph theoery as usually used. For more comprehensive materials on the topic, the interested readers are encouraged to consult (Sporns, 2010).
A set of vertices (or nodes) \(V\) and their associated edges (or connections) \(E\), make up a graph structure \(G = (V, E)\). The edges \(E\) can be either weighted (\(W\)) or binary (\(B\)) in which case they just indicate the presence of a connection between the nodes. Moreover, we can further distinguish the types edges based on the directionality of the connections, directed (\(D\)) or undirected(\(U\)).

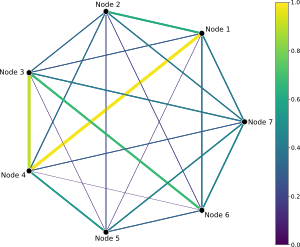

Below is a sample connectivity matrix (weighted) and its representation as a graph structure. For the adjacency matrix, notice the symmetricity,which also implies undirectionality. For the graph, notice that the lines’ weights are relative to the connections’ weights as well as their color.
The minimum required version is BrainVoyager 21.x. Make sure you have the plugin installed into the proper directory and it’s visible and accessible in the Plugins
menu. Also, you have to have currently opened your VMR files beforehand. The plugin will fetch the the list of currently opened VMR files and prompt the user to select which one to work with. In case you load a VMR after you execute the plugin, it will not show up.
The curernt version supports VMR/VTC and VOI files. The protocol (PRT) files, for now support triggers only in Volume Resolution. Also, the begin
and end
volume must be identical. For example, consider the contents of the following protocol file, how the triggers are defined:
NrOfConditions: 4
TriggerXX
4
31 31
65 65
75 75
89 89
Color: 255 0 0
This setup is experimental, and we plan to make it more robust.
We have tested ACPC, MNI and TAL/aTAL spaces with different datasets.

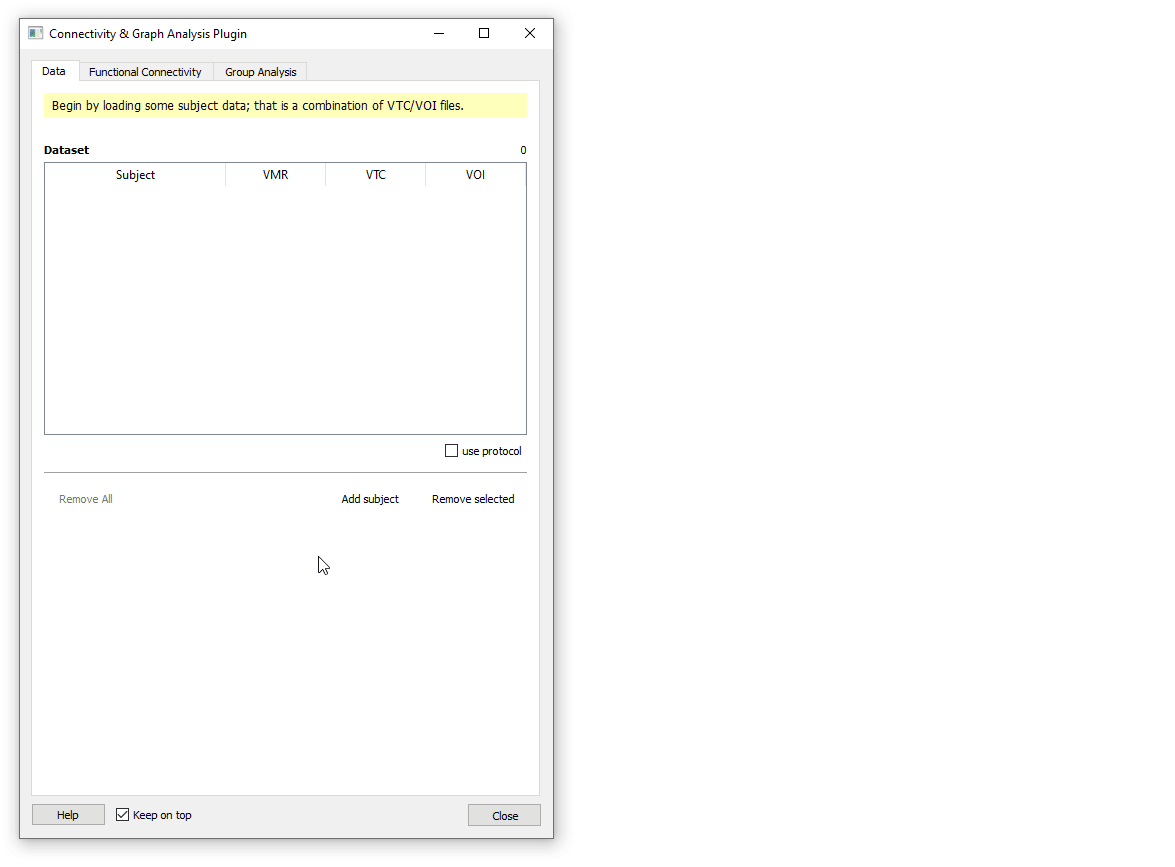

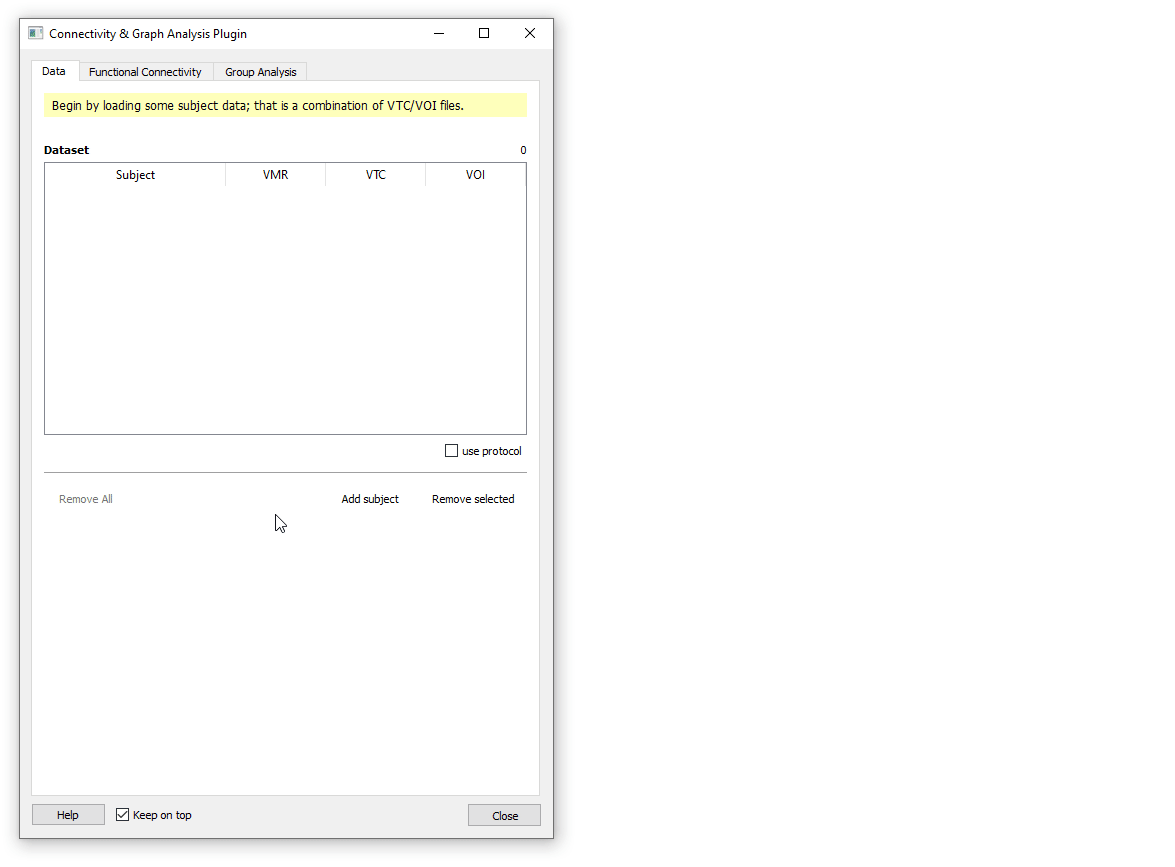

Below, is the main window you will be prompted with, when you execute the plugin. You will have to load a pair of VTC / VOI files and provide a sample name for the current analysis. It is recommended to fill in a short, meaningful name.
You may also, optionaly, load and use a protocol (PRT) file. If there is such a protocol referenced in the VTC file, it will be loaded and linked automatically. In case you use a protocol, the connectivity matrices will be estimated invdividually for each condition.
In either case, in case of an error occuring (i.e. the transformation spaces do not match, or the resolution is not supported) you will be promted to take action.
As soon as all the files have been loaded successfuly, you will no longer be able to load other file on the specific subject.
As soon as, the data have been loaded into memory, you are able to navigate and scroll through the available options in the “Functional Connectivity” tab. Here, you will find all the necessary settings to conduct a connectivity study.

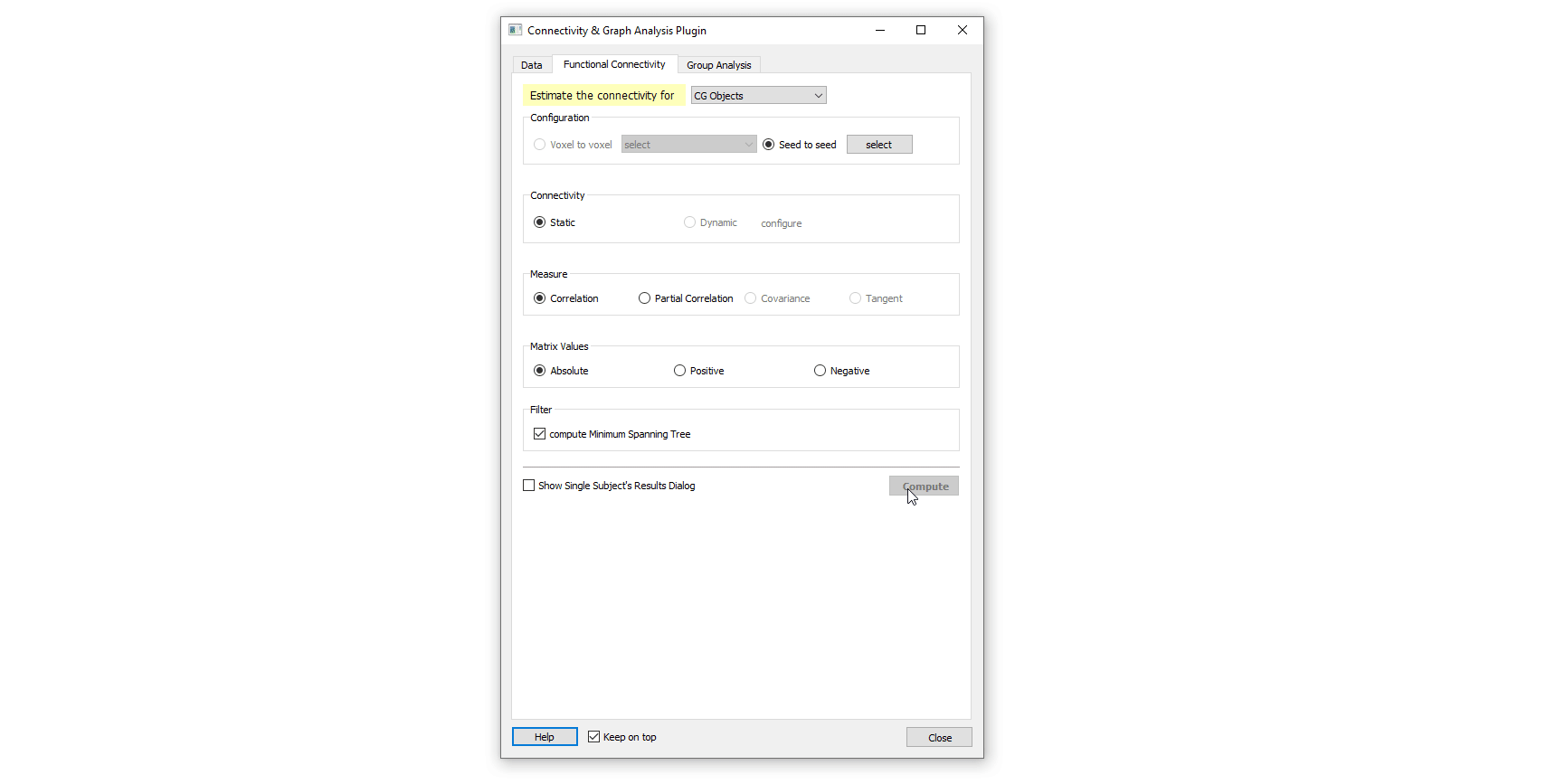

Depending on which kind of study you are interested “Voxel to Voxel” or “Seed to Seed”, you will be presented with similar prompts.
When opting-in for the “seed to seed” approach, you will be prompted to selected which VOIs you would like to include in the connectivity analysis. At least two must be available and selected. To select the desired VOIs, left-click with the mouse, and scroll over the list (if possible), or, select each VOI individually, one at a time with “control + left-click”.
In our simple demostration, will use the later option. Notice that we supress the subject’s results dialog by unchecking “Show Single Subject’s Results Dialog”. We wil show how to access this dialog in the subsequent “Group Analysis” tab.
Please note that (in the current version, this option has been disabled)
In the case “Voxel to Voxel”, the dropdown list will be populated with the available VOIs defined in the VOI file. The connectivity will be estimated within the selected VOI, amongst its voxels.
One, may have noticed that we deselected the option “Show subject’s dialog”. This is done to suppress the results dialog, and is useful when analysing multiple subjects. How to access a subject’s results dialog is shown in the next paragraph.

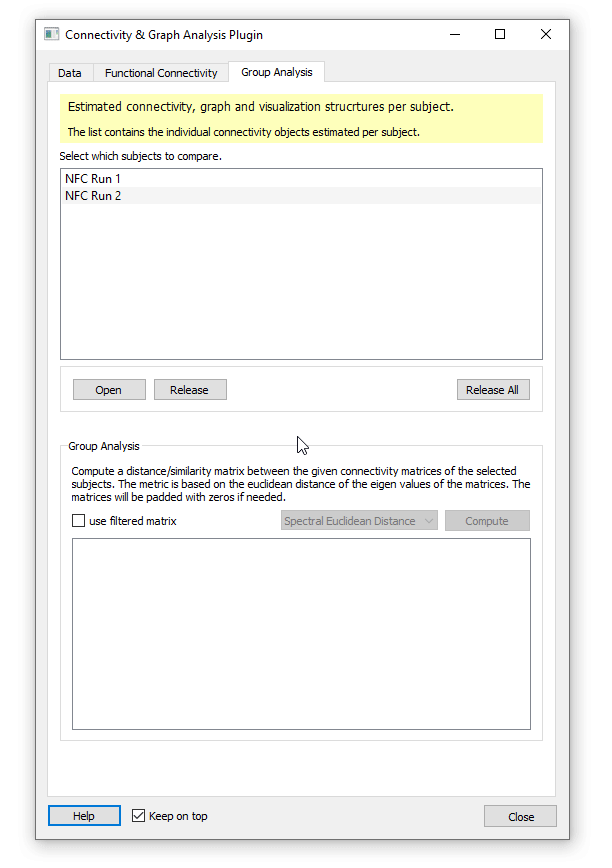

The tab “Group Analysis”, bears a two-fold functionality. Firstly, on the top table, all the subjects’ analysis run, will be listed there and you can browse them; to open a subject’s dialog window just double-click on the name. So, even if you clock a subject’s results dialog, you can always access through this table.
The main functionality of this tab is the comparison of connectivity matrices of multiple subjects/studies. To do so, just choose the subjects from the list you would like to include, and then launch the comparison with the Compute
button. You may optionally use the MST filtered matrices if they have been computed.

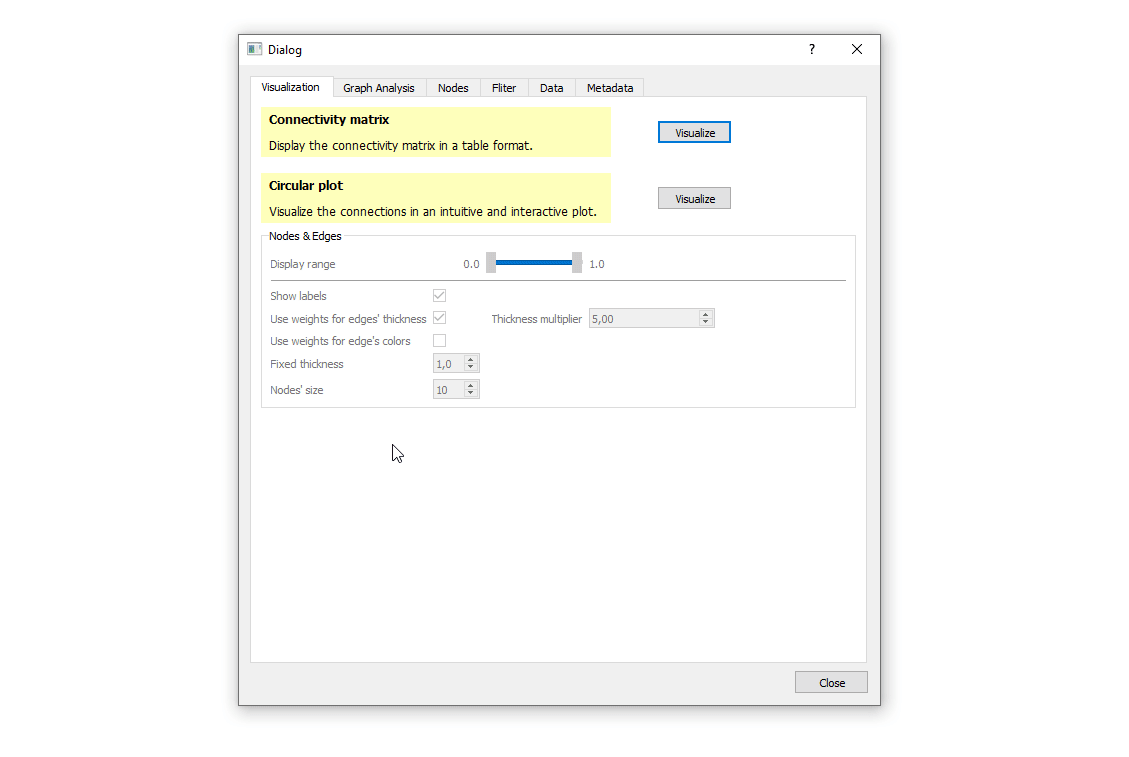

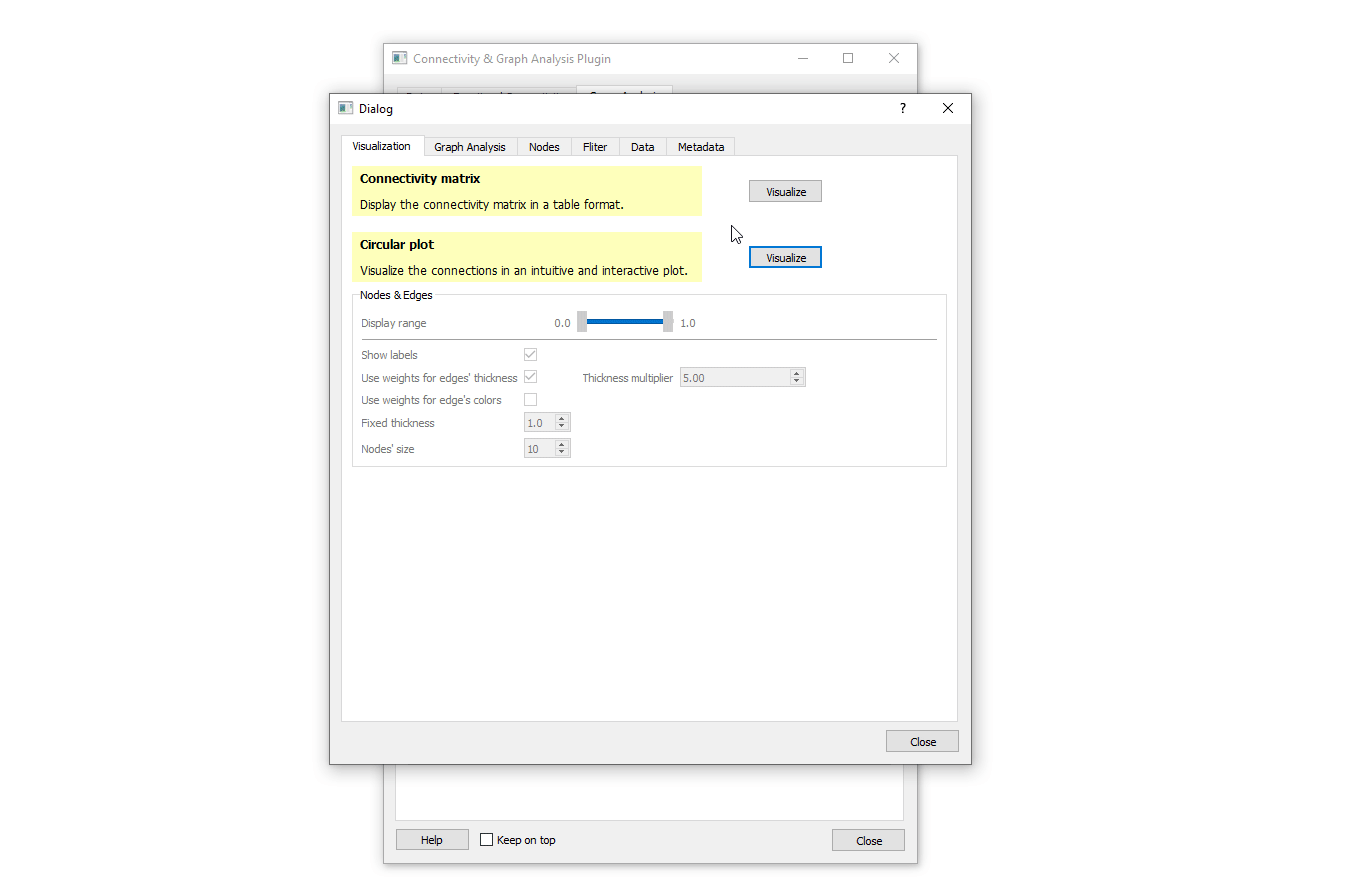

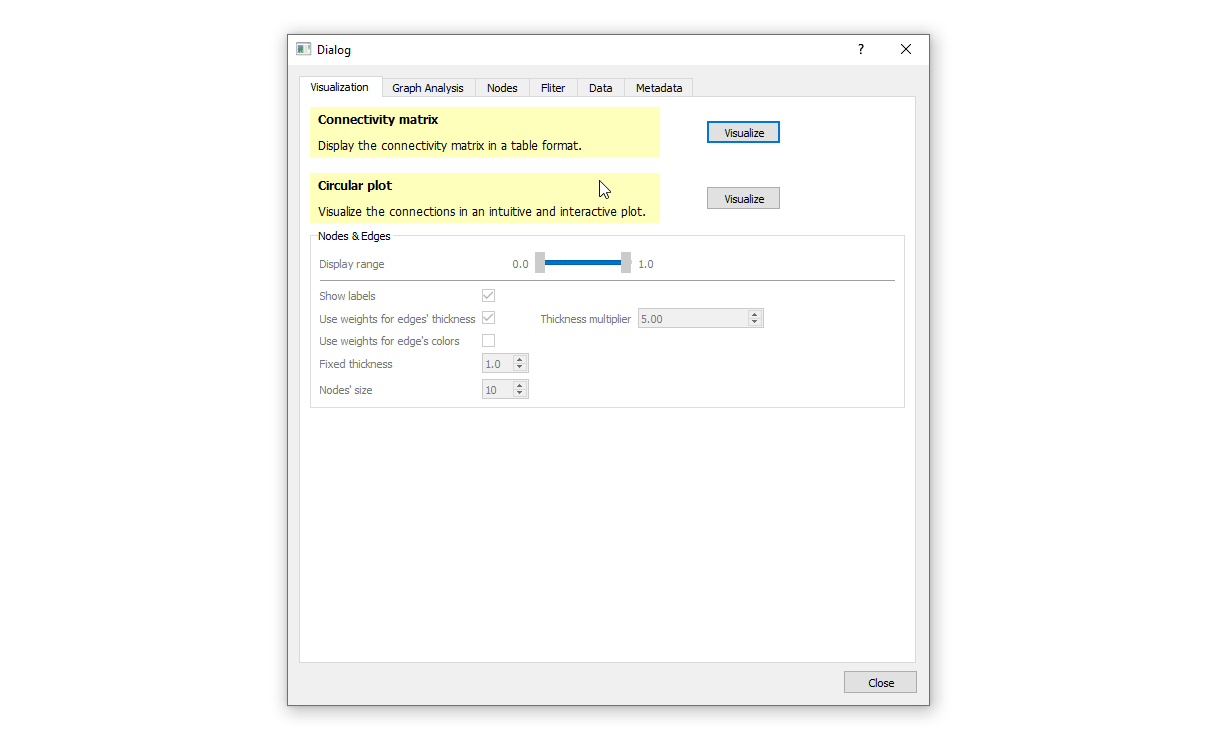

The subject’s dialog provides numerous options and actions; most of the them are self-explanatory. We will go through, the two most improtant tabs in the plugin, the Visualization and Graph Analysis.

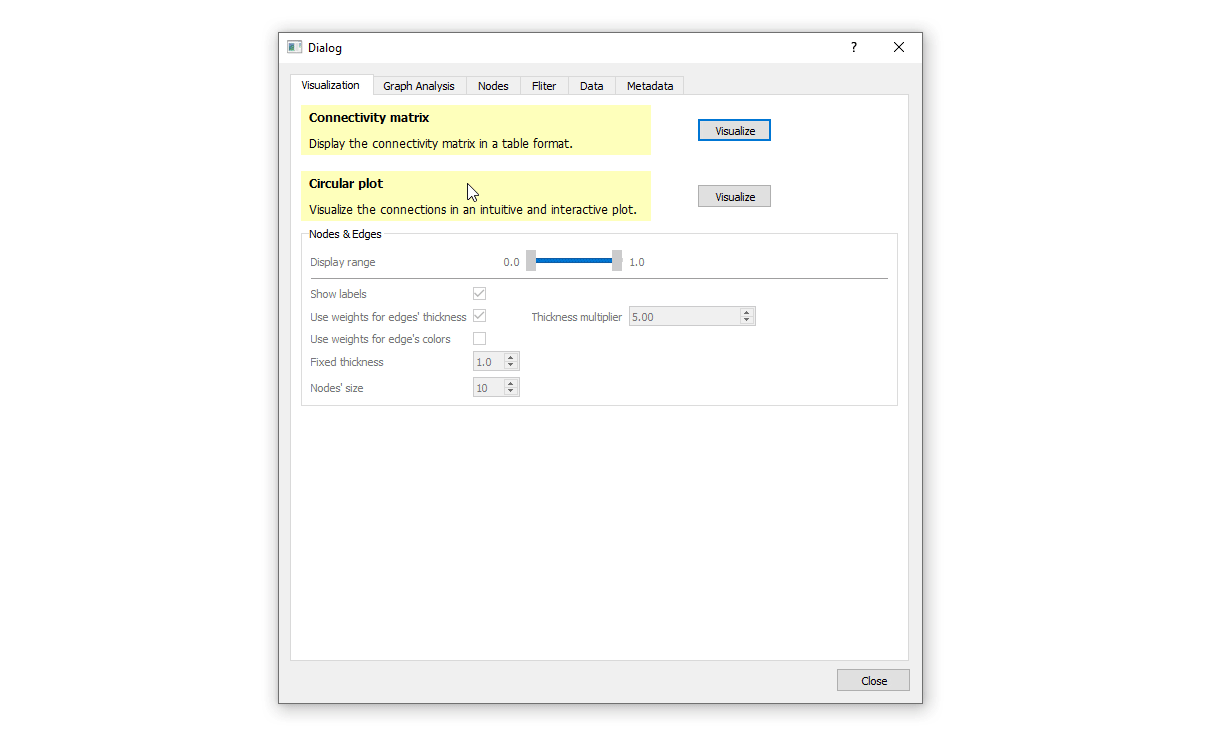

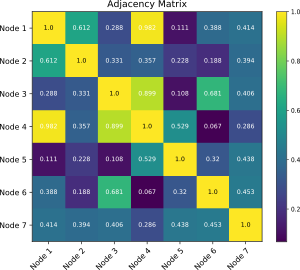

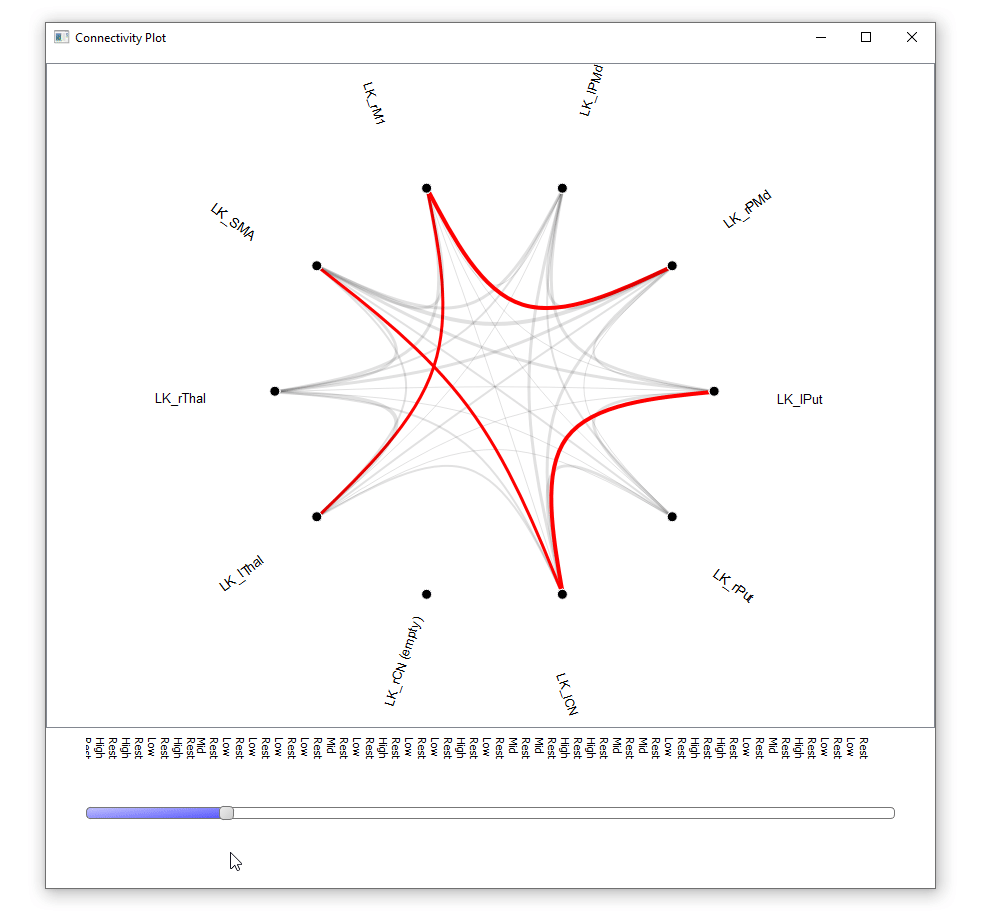

We supply two methods of visualizing the connectivity matrices. The first one, is the standard “Block matrix” (similar and alike to MATLAB’s visualization). And the other one, is a more intuitive plot, called, Circular Plot. There are a few options for both plots, however more emphasis is given to the circular plot.
In the following animation, we plot the connectivity matrix within a VOI, in a Voxel to Voxel level (thus the numeric labels); and having compute the Minimum Spanning Tree. By default, in the circular plot, all lines are black and their width is dictated by their adjacent connectivity value. The important links, as identified by the MST algorithm are drawn in red. Subsequently, we switch the colormap, and from black, the links are color based on their associated connectivity value. There are a few visualization and interaction options, i.e. the nodes’ size, the thickness of the lines, etc.
This example demonstrates how a dataset with a supported protocol is handled, with the conditions shown above the sliding bar. The triggers are represent with their name (just plain text) and no network is plotted. Also, notice the interactive features, such as filtering the plots when the mouse moves over a VOI.

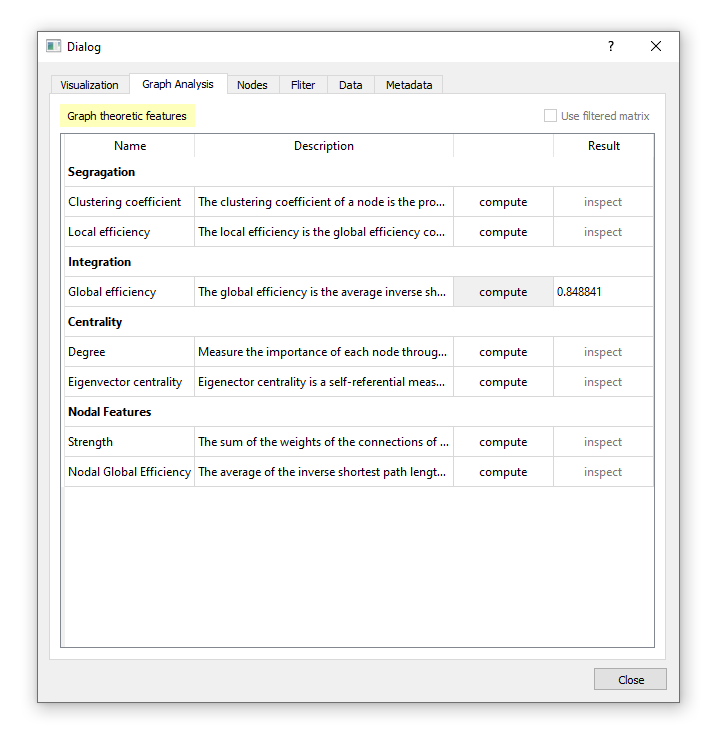

The backbone of the plugin. The connectivity matrix is translated into a graph, and thus, you can compute and extract the different graph theoretical features of a graph. Some features produce only a scalar result, such as the “Global Effieciency”, and it’s displayed inplace, within the same window. However, most of the other features, produce either arrays or matrices, which you will able to inspect their plots, using the associated “inspect” button.
For example, computing the Global Efficiency in our example dataset, yields the following result:
In case of a simple dataset, the Strength, because it yields a scalar value for each Node in the graph, it returns an array which can be visualized using the “inspect” button (the following results are obtained using Seed to Seed).
When mutliple conditions are present, their features will be plotted in order and color-distinguished.
In case of a protocol file is used, the strength will be computed for each individual connectivity matrix belonging to each condition and plotted accordingly. On The legend the triggers will be also shown. This is work in progress.
You may export the timeseries and the connectivity matrices from the “Metadata” tab.
Given a number of VOIs (Ns), the average time series wihin each one of the VOIs is used. The connectivity is estimated using these average time series. The resulting adjacency matrix is of size .
Please note that (in the current version, this option has been disabled)
All voxels within a given VOI are used, and the connectivity is estimated between them. This approach would be very interesting in cases where there is a relatively small number of voxels (Nv) within a VOI. The resulting adjacency matrix is of size .
Given two random variables X and Y, we can measure their linear relationship. It is given by the following formula:
where X and Y denote the mean values, and sX, sY the standard deviations of X and Y respectively. The estimated values range in [-1.0, 1.0].
It measures the degree of association between two random variables X and Y, with the effect of a set of controlling random variables removed. We are using the matrix inversion formula to compute the partial correlation. Given a positive definite and invertible, correlation matrix, we can define
and thus,
The estimated values range in [-1.0, 1.0].
It is a measurement of the relationship of the variation of two random variables X and Y:
The following graph features are supported in the plugin organized in the following categories.
Clustering Coefficient
The clustering coefficient of a node is the probability that the neighors of this node are also connected to each other. It is considered to be a measure of the local connectivity or cliqueness of a graph.
Local Effiency
The local efficiency is the global efficiency computed on the neighborhood of the node, and is related to the clustering coefficient.
Global Efficiency
The global efficiency is the average inverse shortest path length in the network, and is inversely related to the characteristic path length.
Degree
Measures the importance of a node through their number of connections/neighbors. One can take into account the incoming, outgoing or all connection from/to a node. This directionality is crucial to consider when working to directed adjancency matrices.
Eigenvector Centrality
Eigenector centrality is a self-referential measure of centrality; nodes have higher values if they connect to other nodes that also exhibit high eigenvector centrality.
Strength
The sum of the weights of the connections of each node.
Nodal Global Efficiency
The average of the inverse shortest path length from a node to the other in the graph.
Minimum Spanning Trees
We use a Kruskal’s greedy algorithm for the computation of MSTs (Kruskal, 1956). MSTs are used as an alternative, bias-free indicators for node significance, diminishing the need for statistical methods.
Laplacian Matrix
The Laplacian matrix of a given graph G is easily computed, as following: L = D - A. Where D denotes the degree matrix, and A the adjacency matrix. There are other special cases of the Laplacian matrix, but they are out of scope of our interest. The Laplacian matrix preserves the same information as the adjacency matrix but carries different properties and meanings, such as its eigenvalues and spectrum.
These methods are used to quantify the (dis)similarity between two or more adjacency matrices. For example, one would like to make a study on (something along the lines):
How do the connectivity profiles between the subjects of a control group and a target group compare.
Many methods have been proposed in the very active literature. Currently we have implemented the following methods:
The spectral distance (Wilson & Zhu, 2008) between two adjacency G and H matrices is simply the Euclidean distance between their spectra (g) and (h). Also, one can use the Laplacian counterparts of the adjacency matrices. is computed using the following formula:
Given two matrices G and H, we can use their k largest positive eigenvalues of their Laplacian counterparts (g) and (h) estimate their distance:
For more details and information the interested readers are suggested to reference the papers (Jakobson & Rivin, 2000, p. @pincombe2007detecting).
We have some plans and ideas already, but if you would like to propose new features, please contact me.
Some of the requested and scheduled features include:
Please check BrainVoyager’s support website for regular updates.
I want to express my gratitude to the following people (in random order) who dedicated time and effort to test the plugin and provide valuable feedback:
Judith Eck
Rainer Goebel
Michael Luhrs
Armin Heinecke
Judith Peters
20190830#1 (2.0.2-beta)
- General
* Properly leave out the unselected VOIs from an analysis.
* Track the changelog based on git-tags (no more long commit hashes).
- Visualization
* Fix a small bug, in which the circular plot, would be plotted even if a trigger/state was present (in which case only the text should be displayed).
* Prepend the text "Trigger" when using a protocol and plotting the graph features.
- Documentation
* Update the plotting strength example.
Consult the accompanying file CHANGELOG
for more details.
Fetch the most recent releases:
Platform | Version | Link |
---|---|---|
Windows x64 | 2.0.2-beta (latest) | win_x64 |
Linux x64 | 2.0.2-beta (latest) | lnx_x64 |
mac OS X | 2.0.2-beta (latest) | macosx_x64 |
Jakobson, D., & Rivin, I. (2000). Extremal metrics on graphs i. arXiv Preprint Math/0001169.
Kruskal, J. B. (1956). On the shortest spanning subtree of a graph and the traveling salesman problem. Proceedings of the American Mathematical Society, 7(1), 48–50.
Pincombe, B. (2007). Detecting changes in time series of network graphs using minimum mean squared error and cumulative summation. ANZIAM Journal, 48, 450–473.
Sporns, O. (2010). Networks of the brain. MIT press.
Wilson, R. C., & Zhu, P. (2008). A study of graph spectra for comparing graphs and trees. Pattern Recognition, 41(9), 2833–2841.
EPI images suffer from geometric distortions due to the susceptibility artifact. The COPE plugin estimates and corrects these deformations using a pair of EPI images acquired with opposite/reverse phase-encoding directions (either anterior-posterior and posterior-anterior, or left-right and right-left).

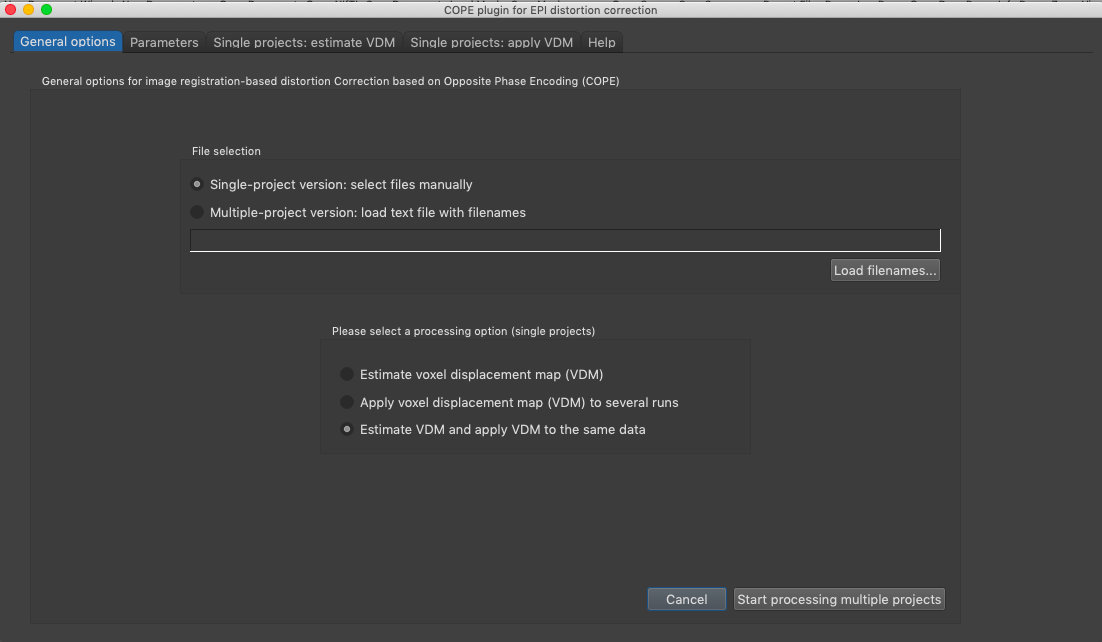

To install the most recent version of COPE, download the ZIP file for the operating system below, unpack and place the *.dll/dylib/so, *.js and *.ui files in the BrainVoyager plugins folder (e.g., for the newest BrainVoyager versions: /User/Documents/BrainVoyager/Extensions/Plugins/ and for older versions like BrainVoyager 21.4: /User/Documents/BVExtensions/Plugins_64/).
Start COPE from BrainVoyager's Plugins menu and access the manual by going to Plugins > Description Of Plugins and scrolling down to the section for COPE. It is recommended to check whether the similarity to the anatomical image improved after undistortion of the EPI image (FMR/DMR). The similarity can for example be calculated via a NCC-kind of calculation in fmr2vmrplugin, or via the Sørensen-Dice coefficient or mutual information (see Python scripts).
Note 12-11-18: Please note that in the plugin is stated that the order of file submission does not matter; however, it turns out that for some datasets, it is better to upload A>>P as the first file and P>>A as the second file (instead of P>>A first). We will also test this for the file submission order of L>>R and R>>L.
Note 09-12-22: Due to an update of FMR file version 7 (from 'ResolutionX' and 'ResolutionY' to 'NrOfColumns' and 'NrOfRows') in BrainVoyager 22.4.2, COPE might not work as required (see below for update). FMR files can be edited with text editors like Notepad (Windows) and TextEdit (macOS).
COPE 1.2.2
Change: Plugin with QML script for BrainVoyager 23.
(22-04-24): 1.2.2.2 for Windows 10/11 beta version
(01-12-23): 1.2.2.1 beta version for macOS (M2): fixing an issue reading batch files, in test phase.
(14-10-23): 1.2.2 for Windows 10/11 from official BV 23 version
COPE 1.2.1
Change: accept modified FMR and DMR v7 format (from 'ResolutionX' and 'ResolutionY' to 'NrOfColumns' and 'NrOfRows') from BrainVoyager 22.4.2.
(09-12-22): macOS Windows 64-bit for BrainVoyager 22.4.2; also works for previous versions (checked with BrainVoyager 21.4).
Example batch files

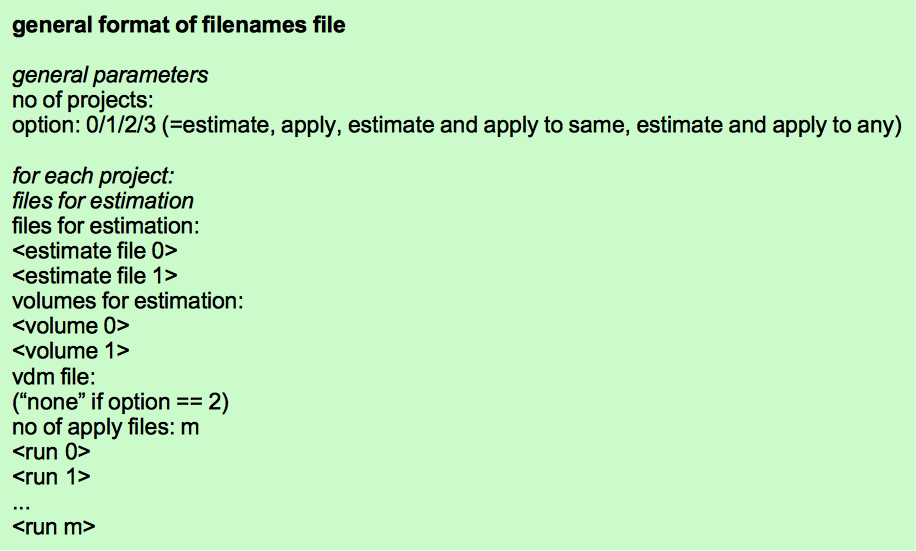

Batch files for option 0 (estimate vdm), option 1 (apply vdm), option 2 (estimate vdm and apply to same files), option 3 (estimate vdm and apply vdm to any files in same session) can be found attached to this page.
H. Breman, J.L.J. Mulders, L. Fritz, J.C. Peters, J. Pyles, J. Eck, M. Bastiani, A. Roebroeck, J. Ashburner, and R. Goebel (2020) An image registration-based method for EPI distortion correction based on opposite phase encoding (COPE). In Lecture Notes in Computer Science 12120, pp. 122-130, 9th International Workshop on Biomedical Image Registration.
